Serenity Vertical Hyperbaric Chamber by Elite Hyperbaric

Our newest Large Wheelchair Accessible and Walk-in Vertical Hyperbaric chamber design supports rolling a wheelchair directly into this portable hyperbaric chamber. This vertical chamber stands 6 feet tall allowing users to stand in the chamber. Also, this chamber is 71 inches deep so a customer can either relax on a reclining chair or lay down. This is our most versatile chamber available with a wide entry door for ease of access into the unit.  We utilize medical-grade components and innovative technology. Our Hyperbaric chamber system includes an upgraded 10 LPM – 20 PSI oxygen generator producing 96% oxygen purity for the most effective treatments and is able to deliver compressed oxygen at 1.3 ATA.  Our system offers a dehumidifier at no additional cost to make your sessions more comfortable. Our system has been built with safety in mind offers an emergency pressure relief button and dual pressure gauges both inside and outside and redundant pressure regulators to maintain consistent circulatory airflow within the chamber during treatments.

Our advanced hyperbaric oxygen systems offer premium features that our competitors do not offer at competitive pricing. With a standard Air cooler to increase comfort and a 10 LPM Oxygen concentrator support a maximum pressure of 18 PSI as a standard feature. Our research and design team has worked hard to provide you with the most innovative features for your therapy.

We believe no other hyperbaric chamber manufacturer can claim they have a more rigid test plan than ours. Our test systems have been running for over 5 years continuously at over 3 times the pressure which is over 43,000 hours with no faults. Once you feel the thickness and ruggedness of our materials, you will be amazed at the value you have received. The hyperbaric chamber reservoir bag is rated to last a whopping 39 years if used 1 hour per day and 5 days per week. Our manufacturing has been certified as ISO9001, ISO14001, and ISO13485 compliant.

ISO 9001 sets out the criteria for a quality management system.
ISO 14001 sets out the criteria for an environmental management system.
ISO 13485 specifies requirements for a quality management system where an organization needs to demonstrate its ability to provide medical devices and related services that consistently meet customer and applicable regulatory requirements.

With Internal and external pressure gauges to keep the user informed of the current pressurization level and again a feature that some of our competitors at 3 times the price do not provide. One should always have the ability to safely view what pressure the chamber is operating at to avoid any possible early exit of the chamber and subsequent chamber damage.

Our units are made to last 25 to 30 years and can be used continuously with durable triple heat-welded seams, medical-grade materials, and a proprietary 3-zipper system with a center flap that makes our Hyperbaric chamber unit stand above our competition. Our units have many certifications as listed below.

Many of our customers comment on how happy they are to have chosen our hyperbaric chamber and are just so grateful we can provide such high quality at an affordable price. Be careful when choosing a hyperbaric chamber system. When considering this type of purchase for your health, you want to choose a product from a company that will provide you with the best quality and service in addition to a product that will provide effective treatments for years to come.

Call our specialists for any questions in selecting the system that will work for you and learn more about our superior hyperbaric chamber systems! 630-634-7500

HYPERBARIC OXYGEN CHAMBER FEATURES:
	Three Year Warranty With World Class Service and Support
	Delivers 95%+ Oxygen under pressure via a face mask or nasal cannula with our Drive Medical Devilbiss Oxygen Concentrator.
	Plenty of room for comfort and to be able to move around.
	Designed to support 1 to 2 individuals. The vertical design allows for standing or sitting. Supports a reclining chair inside.
	Seams are triple heat welded and be assured that no toxic glues are required nor utilized.
	4 transparent viewport windows allow for ambient light and monitoring from multiple viewpoints.
	Can be operated alone, without assistance.
	Our unique system prevents carbon dioxide build-up by exhausting the carbon dioxide through the pressure relief valves.
	Our Compressor features a 5 stage filtration system and our Oxygen generator filtrates pollutants down to the micron level.
	Features a proprietary 3-zipper system with a center flap providing a seal with leak protection and durability to last a lifetime.
	The unique design of pressure relief valves both internally and externally allows for depressurization from inside or outside the chamber.
	Includes an emergency valve on the chamber to speed the depressurization in an emergency.
	Delivers safe and effective Oxygen sessions at 1.3 ATA or 4.3 PSI.
	An internal pressure gauge is equipped so the user can observe the pressure while inside the chamber. The unit has both internal and external pressure gauges.
	Quick connect Internal steel frame allows entry into the unit without the unit collapsing on top of you and holds the shape when the unit is not in use.
	The included air dehumidifier is designed to make your experience more comfortable. This is a premium feature offered at no additional cost. Optionally upgrade to our integrated Air conditioning system.
	Our materials are extensively tested and certified non-toxic medical grade extra strength 3 layer 44 oz. TPU embodied with a PET polyester material sources from Germany (used for years by NASA in space suits). All Non-Toxic. Phthalate Free
	Provides Double Deck Windows for additional strength.
	Can be operated continuously and safely.
	Provides the best quality and features in this price range and rivals many units at double the price.
	Includes video setup training, Quick Tips guides for usage, and Customer support for any questions during acquaintance with the unit in addition to ongoing support.
	Apply for 6-month financing contact us for details. Fast Shipping to your door.
	Professional Installation is available in most areas.
	Best pricing in the marketplace.
	An optional Air Conditioning system can be integrated that would ensure a cool experience well beyond the capabilities of the dehumidifier.
	We sell internationally and can provide our systems to your international voltage and plug type requirements.
	Superior Quality is our primary concern with certifications and long-term testing: Our test systems have been running for over 5 years continuously at a much higher pressure which is over 43,000 hours with no faults. Once you feel the thickness and ruggedness of our materials, you will be amazed at the value you have received. The Hyperbaric Chamber reservoir is rated to last a whopping 39 years if used 1 hour per day and 5 days per week. Our manufacturing has been certified as ISO9001, ISO14001, and ISO13485 compliant. We have had some customers tell us stories of purchasing used chambers from our competitors on eBay or other mediums only to find they had leakage. So why buy a used system when you can have a new one and have peace of mind knowing that you are purchasing the best in both quality and features to hold the test of time. We have thousands of satisfied system owners all over the globe internationally enjoying the benefits of our systems.

WE HAVE TWO DIFFERENT OPTIONS FOR FINANCING

1) Apply for 6-month financing contact us for details.

2) Apply for Business Financing through our Speedy Approval Finance company at the following address, Our Super low pricing won’t last forever so take advantage of this opportunity today! Apply Now



OXYGEN HEALTH SYSTEMS HYPERBARIC VERTICAL OXYGEN SERENITY CHAMBER SPECIFICATIONS
SPECIFICATIONS	WEIGHT	POWER	SIZE
Chamber	30 lbs	N/A	Chamber Size: Inflated 71”L x 63”W x 67”HDoor Size: 31” Wide x 57” Tall Internal Frame Size: 60 “L x 40″W x 71″H Bolster Width – 53 inches
CHAMBER FEATURE ★ 1.3 ATA | 4.3 PSI | 32 KPA ★ High strength double-sided 44 oz medical grade TPU/ polyester material. ★ Certified Non-Toxic/Eco-Friendly ★ Portable/Foldable ★ Safe/One-Person operation ★ Warranty 3 Years ★ 4 Windows – 1 on each sides
Oxygen Concentrator (See Spec Sheet)(Click to View the Devilbiss 10 Service Manual)	42 lbs	640 Watt	13″ L x 12″ W x 24.5″ H
OXYGEN CONCENTRATOR FEATURE ★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-Toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor.
Compressor 180 LPM	52 lbs	620 Watt	15″ L x 9.5″ W x 10.2″ H
COMPRESSOR FEATURE ★ Oil-free ★ Non-toxic/ECO-Friendly ★ Quiets ★ Super adsorption activated filters ★ Double inlet and outlet filters.
Dehumidifier	11 lbs	300 Watt
DEHUMIDIFIER FEATURE ★ Reduces humidity level to keep you comfortable.
Total system Weight	135 lbs
Total system Watts		1560 Watt
All Equipment Voltage	110v-120v ( 220V available upon request)
Certificates	CE, ISO9001, ISO14001, ISO13485
Optional Upgrade
AC Unit	67 lbs	550 Watt	13″W x 16″L x 22″H
AC FEATURE ★ Temp. Range（℃）: -5~30 (Water)
Grounding Wire	0.023 lbs



OXYGEN CONCENTRATOR
Providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes. Provides a hefty 640 Watt Motor for long-lasting durability!

NEW QUIET AIR COMPRESSOR
Adjustable pressure control system Oil-free low noise design with two mufflers provides high volume Air Flow at 120 LPM. Provides activated carbon two-way filtering technology. Effectively Purifies air and all dust contaminants.

AIR DEHUMIDIFIER
Dehumidifier provided as a standard option also saves over $700 in cost.

RELIABLE PATENTED ZIPPER SYSTEM

2 layer zipper with center flap for an anti-leak design. Our zipper system provides double protection and reduces stress on the zipper system to provide many years of usage. Additionally, the outer cover zips up for additional chamber support to support the longevity of our system. We use the industry’s first “highly sealed triple reinforced fasteners.” Sealed with silicone and 2 layer zipper to completely seal and prevent leakage for years to come.

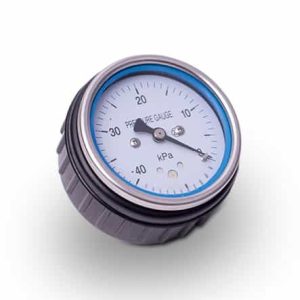

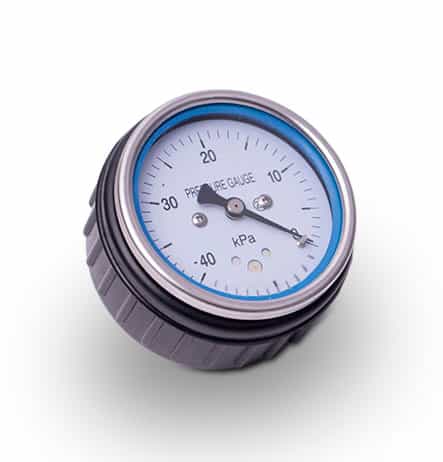

INTERNAL AND EXTERNAL PRESSURE GAUGE
Internal and External high-precision pressure gauges, allowing you to view pressure changes at any time. Allows for accurate observation of pressure inside and outside the chamber.

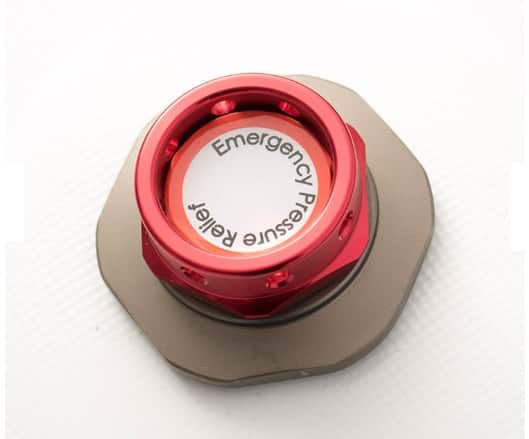

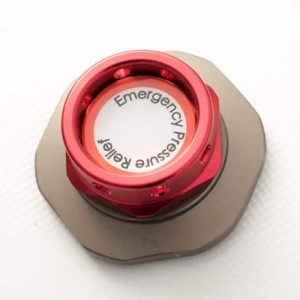

EMERGENCY PRESSURE RELIEF VALVE
Patented design emergency relief valve, in case of emergency, the user can press the release button from interior to depressurize the chamber quickly, then open the zippers to exit the chamber quickly.

AIR CONDITIONER

Our New Air Conditioner is a two-part system with a condenser on the inside of the chamber and the cooling unit on the outside of the Chamber. This system provides all the comfort you will need during your sessions or during extended usage of the system. OPTIONAL ADDONS: We have the option to order an Air Conditioning system. We are the only hyperbaric manufacturer to offer an air conditioning system for use with Hyperbaric Oxygen Chamber Systems. Call for details.



THE SYSTEM INCLUDES THE FOLLOWING ITEMS:

	Chamber Capsule
	Oil-Free Air Compressor
	Oxygen Concentrator 10 liter/min
	Metal Frame
	Dehumidifier
	A muffler designed to reduce noise in the chamber
	2 Oxygen Masks, 2 Headsets, and 2 Nasal Cannulas included to breathe oxygen directly.
	Communications System
	LED Interior Lighting System
	Finger Pulse Oximeter to measure blood oxygen saturation



KEY FEATURES OF OXYGEN HEALTH SYSTEMS CHAMBERS
Portable, Simple to Install, Easy to Use	Durable Internal Frame for Greater Chamber Structure Support	Environment-Friendly Materials, NON-Glue, NON-Toxic	Memory Foam Mattress Made for Greater Comfort
Quality Dual Zipper System (YKK) for Durability and Strength	Internal/External Dual Pressure Display Allowing Pressure Reading Anytime from Inside and Outside	Five Carbon Filters Designed to Remove Fine Contaminants and Provide Clean Air	Internally/Externally Operable Pressure Release Valve for Self-Sustaining Operation
Quiet High-Volume Air Compressor Designed to Expel CO2	Dual-Action Air Conditioner for Internal Cooling/Removal of Humidity	Included Ionization Technology to Elevate Negative Ions Inside Chamber	Multiple Spare Ports For Future Expansion
Redundant Pressure Regulating Valves for Added Safety	Super High Pressure 20 PSI, 10 LPM Oxygen Concentrator with 95% Purity	Operational Videos and Training	Higher pressure models available. Higher pressure translates to greater compression of oxygen molecules
Available Models with Advanced Door Design for Easy Entry/Exit for Mobility-Challenged Users	O2 Concentrator at NO Extra Charge	Default Dehudifier at NO Extra Charge Included with Chamber Without A/C	Midwest-Based US Company with all US-Based Customer/Technical Support
